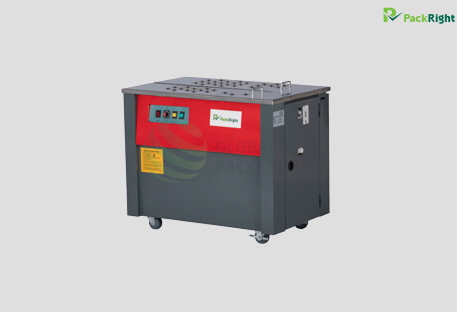

Semi Automatic Strapping Machine - PR HD 1-B, Heavy Duty Ball Table Top

The machine is made from high-quality durable material which enables it to withstand wear and tear for a long period of time. The PR-HD 1-B has a ball table top ,which consists of 37 SS balls on top ,which helps to free rotation and movement of heavy boxes on the table.High quality wearing parts are used in the machine giving it a long operational life and lowering your cost.

Technical Specification

Power 1 Phase, 230 Volt Ac motor
Strap Width 9, 12, 15 mm (Adjustable)
Strapping Tension 15 -50 kgs
Strapping Speed 2.0 sec. /Strap
BoxA  Size Min. 60 mm, Max “ Any Size
Top Thickness 3 mm Thickness (Stainless Steel)
Box weight capacity Max 80 kg
Machine Size L 910 X W 580 X H 750 mm
Machine weight 127 kg net
Make PackRight

Features

  • Advance PCB control
  • System 60 sec auto stop
  • Wearing parts using extra hardening
  • Auto cutting “Limit switch/ Round Belt
  • 39 SS Balls
